GVS Panoramic 24" Display technical specification Table

Image Image Image
Model

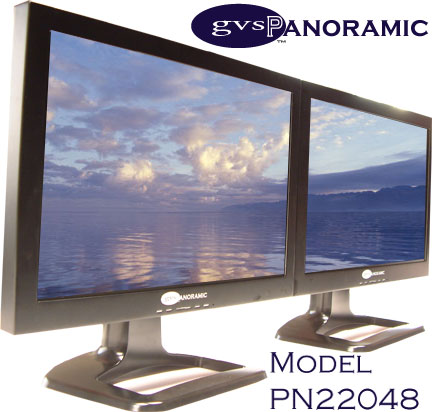

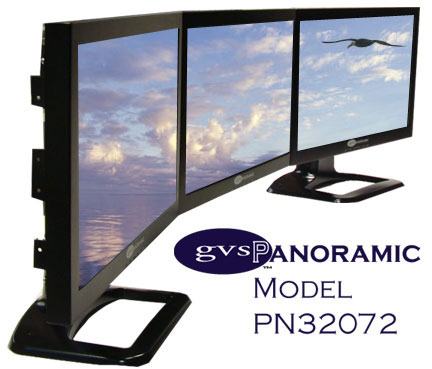

Panoramic Single panoramic Display Dual panoramic Display Triple Panoramic Display Quad Panoramic Display Quint Panoramic Display

Part Number PN012024 PN022048 PN032072 PN042096 PN052120

Model Number Panoramic-120 Panoramic-220 Panoramic-320 Panoramic-420 Panoramic-520

LCD Size VLS 24" 48" 72" 96" 120"

Display Type Matrix thin film transister, liquid

Pixel Pitch 0.270 mm

Display Color 16.7 Million

Hor. Freq.Range 31 kHz to 81 kHz

Ver. Freq. Range 56 Hz to 75 Hz

Maximum Input Video Bandwidth 200 MHz

Native Resolution 1920 x 1200 3840 x 1200 5760 x 1200 7680 x 1200 9600 x 1200

Recom. PC/Mac Res. 1920 x 1200 @ 75 Hz

Power Supply 0.4A @ 100 - 120 Volts 2W (Save)

Controls Digital

On-Screen Manager Yes

Brightness 300 cd/m2

Contrast Ratio 500:1

Color Gamut LCD panel 60%(typ) against NTTSC color

Backlight without Inverter 6 cold cathode fluorescent lamps light

Power Consumption per display 90 W (max) 2W (Save)/per display

Pivot Enabled Yes

Removable Stand Yes

Touch Screen Optional

Multimedia Attachable speaker option

Input Signal Digital and Analog

Response time (ms) 25

Signal Cable 15 Pin D-Sub and DVI-D

Physical Dimensions (WxHxD) 23.0" x 20.0" x 9.5"/

Packaging Dimensions (WxHxD) 25.0" x 30.0" x 14.0"/per display

Physical Weight 23.0 lbs/per display

Packaging Weight 28.0 lbs/per display

Plug and Play DDC 2B

Warranty for LCD display and backlight 3- years

Pixel failure class/Viewing Direction Class ISO13406-2/4 and Reflection class 1

Viewing Angle (H/V) 170°/170°

Single input Video Analog RGB, DVI digital Link

Video Level Analog: 0.7 VP-P; Digital; TMDS

Sync Type Separate H/V, Composite H/V
